RAINFALL FREQUENCY ANALYSIS
Simple analysis of high precipitation

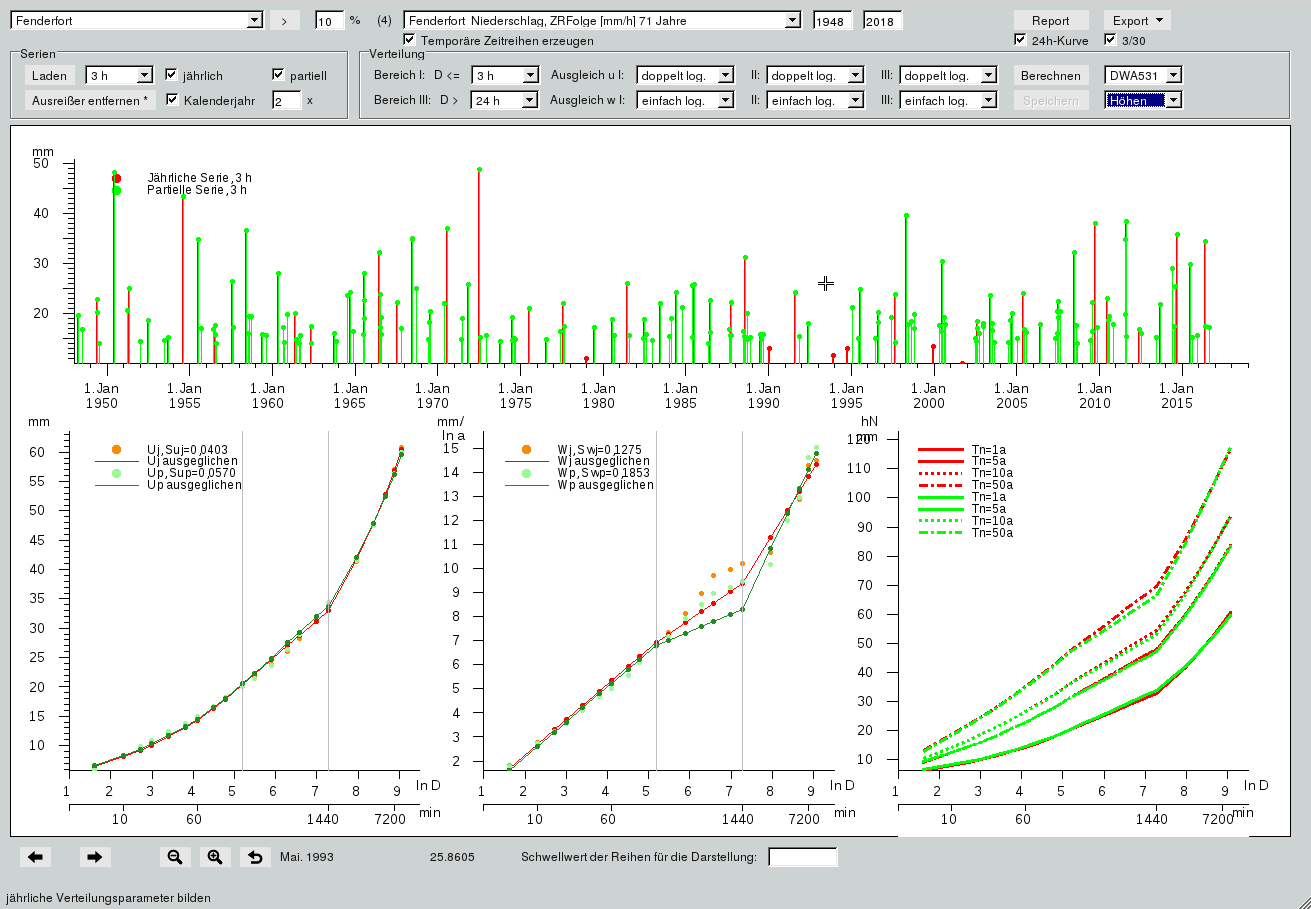

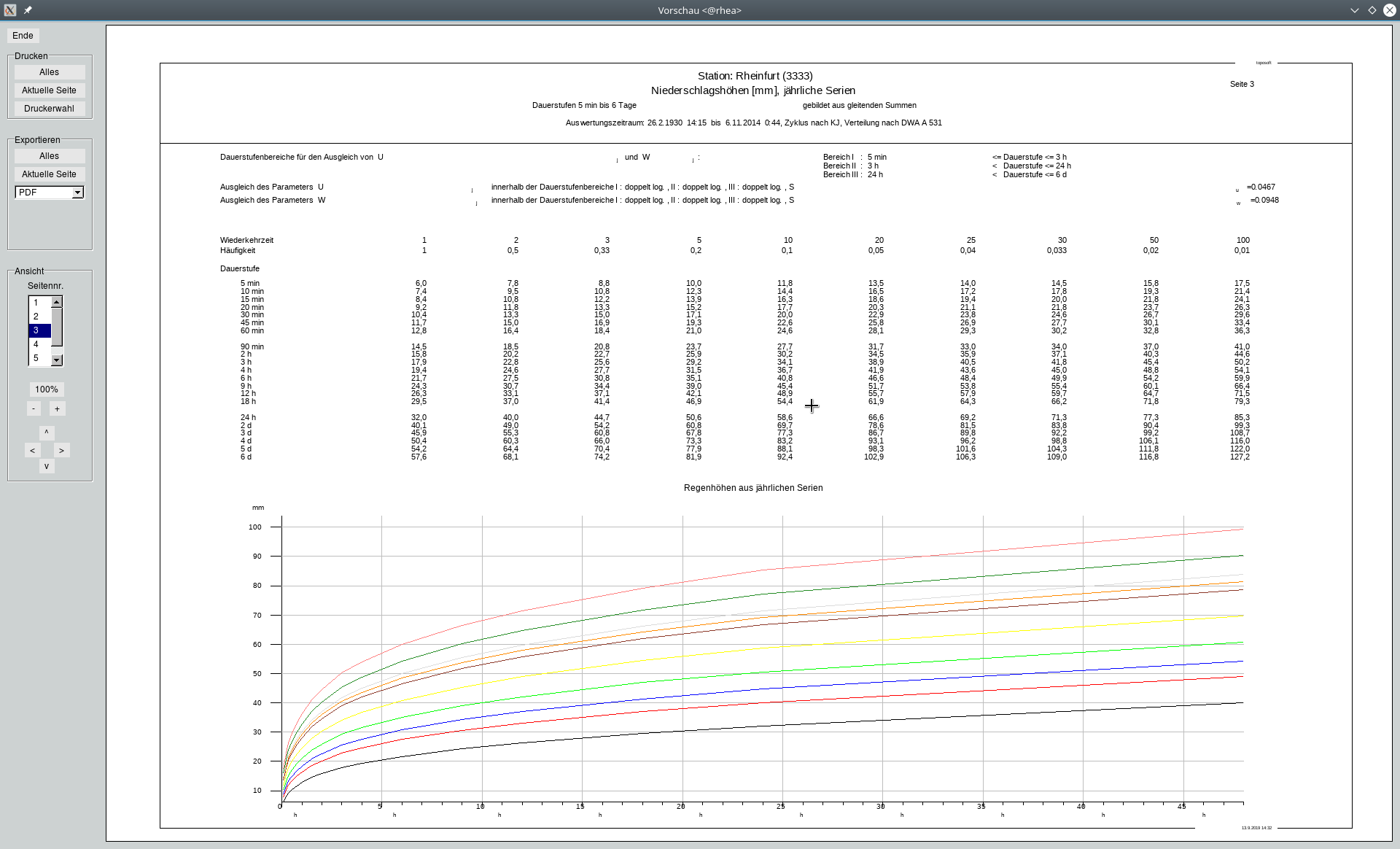

This module combines two goals: it completely implements the DWAA 531 and it has a tidy, appealing interface. Partial and annual series can be calculated from continuously recorded precipitation. The summation is made via sliding, without the grid. The independence of events is implemented in compliance with the rules. The correction method of the distribution parameters u and w can be selected individually for each area. These parameters are stored permanently and are ready for further use (see below). In addition to rain altitude lines, a plausibility diagram of the distribution parameters can also be created. All graphics can be output as a PDF, and the series and distribution parameters exported as a CSV file.

Rapid high precipitation analysis

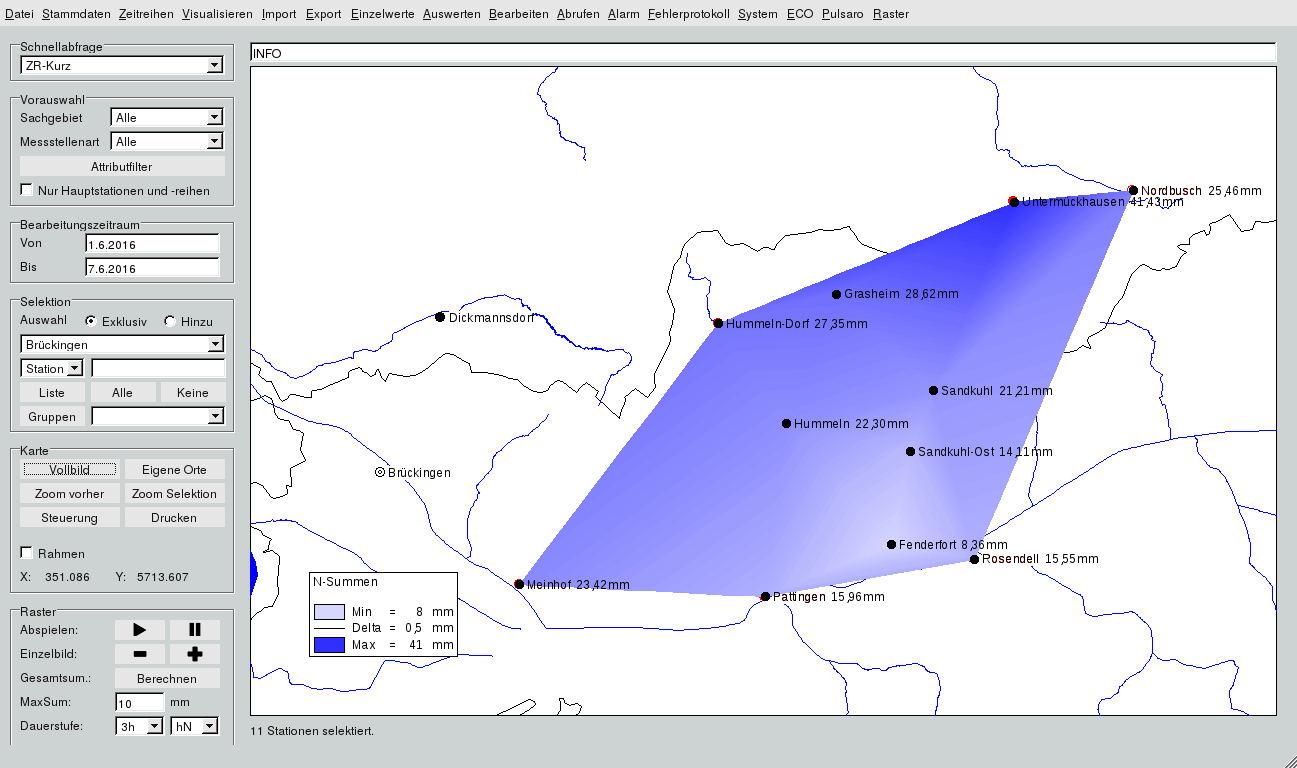

With the rapid high precipitation analysis you can quickly get an overview of a precipitation occurrence in the area. You select the time period, the stations to be analyzed, and a duration level. You will then get a table that shows the annuality of the most intense part of the occurrence for all stations. In addition, the highest annual duration level for this occurrence is automatically specified. The table also indicates the SRI12 index per station. The map shows Isohyet gradients or areas of equal annuality. This gives you a spatial overview of the occurrence at the click of a button. In addition, by pressing a button, you can display time series graphics with the occurrence per station via TopoVit. You can create PDFs from spreadsheets, time series graphics, and maps. The tabular data can be output as CSV files.

Precipitation Annuality

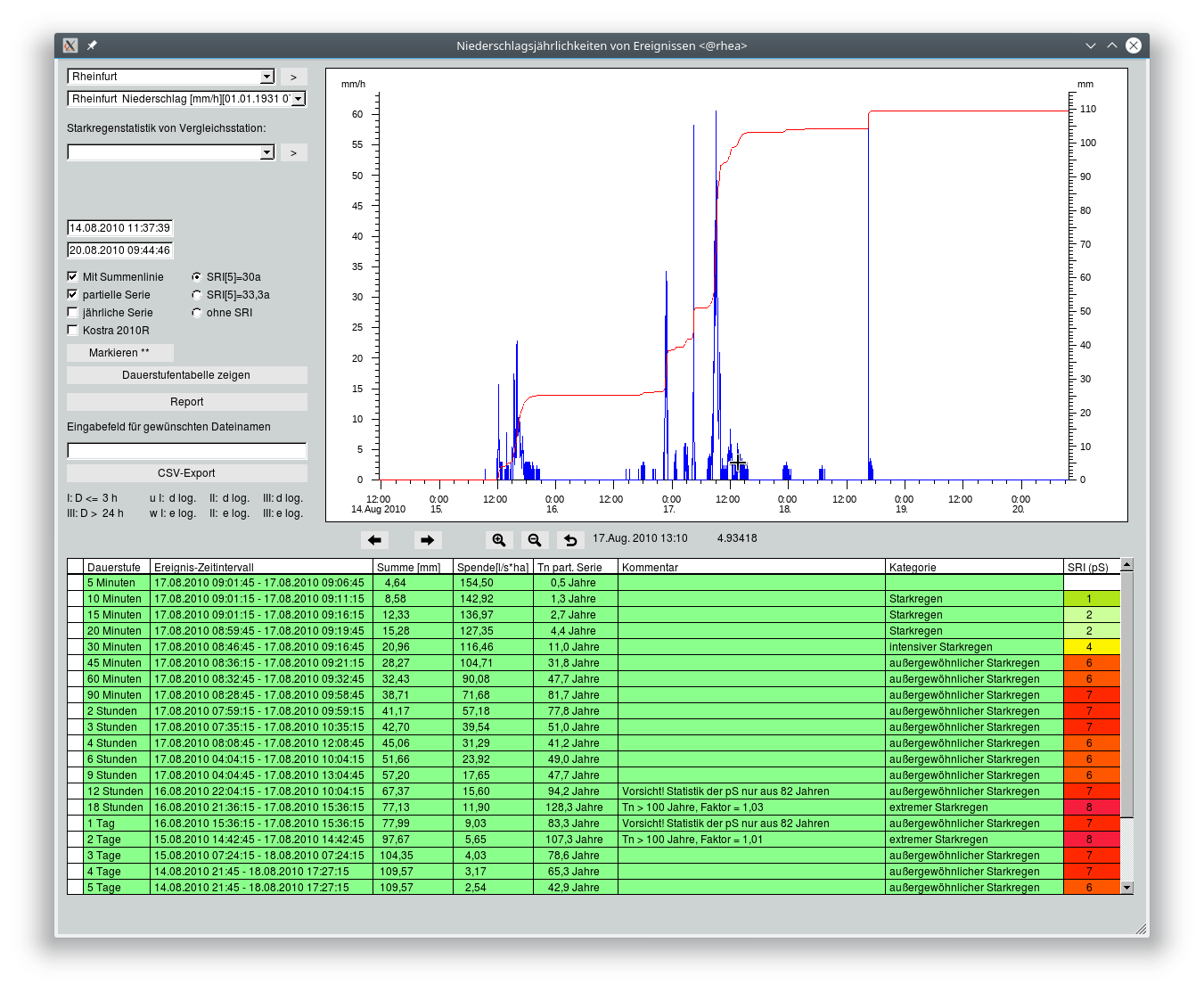

This module determines the annuality of a specific occurrence. At each time, the most intense area is searched for, and its annuality is determined by means of the partial and annual series. The high precipitation index SRI12 is determined and presented in color. If there are no series for comparison, the annuality can also be determined using data from KOSTRA 2010R from the DWD. The grid matching the station is automatically determined based on its position coordinates.

Eindrücke

Documentation
